Windform SP
Class of Material
Carbon fiber filled composite material polyamide based
Technology
Selective Laser Sintering
FEATURES
Excellent resistance to: impact, high vibration, deformation, high temperaturesTop level materialWaterproof @ 3-4 bars
KEY VALUES
Density (20° C) 1,106 g/ccHDT (1.82 Mpa) 186,5° CTensile Strength 76,10 MpaElongation @ break 11,38 %Melting point 193,3° C
APPLICATIONS
Dyno testing, on track testing and pre-series partsFunctional components for high demanding sectorsParts requiring resistance to: impact, vibration, deformation, high temperatures
Technical Properties
Density: 1,106 g/cc
Colour:
BLACK
| Thermal Properties | Test Method | SI Unit | US Unit |
|---|---|---|---|
| Melting point | ISO 11357-2 | 193,3 °C | 380 °F |
| HDT, 1.82 Mpa | ASTM D 648 TYPE B | 186,5 °C | 368 °F |
| Vicat 10N | ASTM D1525-09 | 189,9 °C | 374 °F |
Note: The material properties provided herein are for reference purposes only. Data was generated from the testing of parts produced with Windform SP material under optimal processing conditions. Actual values may vary significantly as they are affected by part geometry and process parameters. Material specifications are subject to change without notice.
Standard Technical Details for Accuracy versus Tolerance:
For parts up to 1 mm (0.039″), the standard tolerance is ± 0,070 mm (0.003″)
For parts up to 3 mm (0.118″), the standard tolerance is ± 0,125 mm (0.005″)
For parts up to 6 mm (0.236″), the standard tolerance is ± 0,150 mm (0.006″)
For parts over 6 mm (0.236″), refer to UNI EN ISO 286-2 JS14 class (linear tolerances).
Technical specifications
Windform® SP is a carbon fiber reinforced composite polyamide material characterized by a dark black color.
The material has excellent mechanical properties similar to Windform® XT 2.0, with the addition of increased resistance to shock, vibrations and deformation. It also shows increases in impact strength and elongation at break, as well as excellent thermal properties and resistance to high temperatures.
Windform® SP is a SLS material with optimal mechanical properties per density units.
It has waterproof properties, and it is resistant to absorption of liquids and moisture.
Windform® SP has been rated HB according to the flammability UL 94 test, and it has passed outgassing tests carried out at NASA.
It is skin contact approved.
Applications

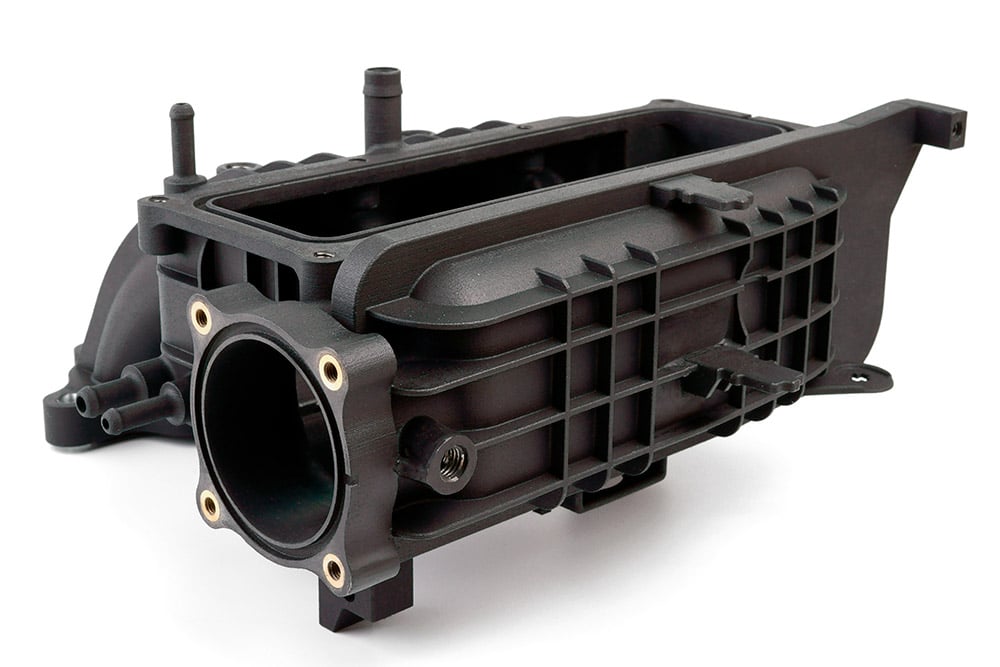

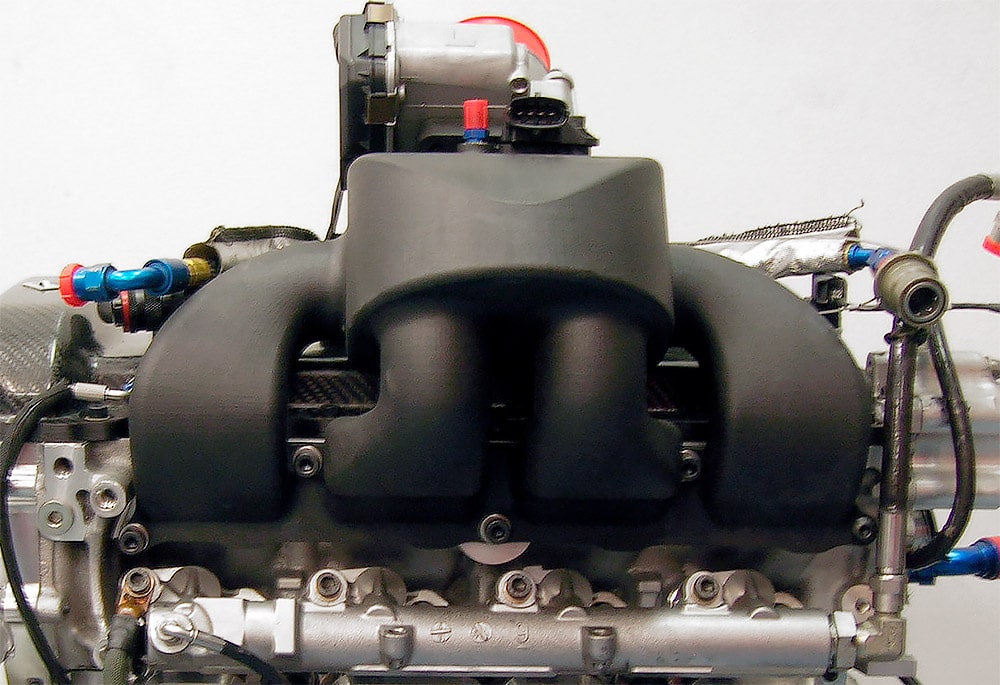

Windform® SP is the suitable material for end use components in the most demanding industry, such as Motorsports, Automotive (for under the hood components, e.g. intake manifolds) and Aerospace (components for UAV and UAS).
These applications indicated are just examples. The versatility of the product combined with the technology used, allows for near endless possibilities.
